Home » Product » Type of Stainless Steel » Martensite » 410

410

410 Stainless Steel is a martensitic stainless steel.

Model:
410 Stainless Steel Plate
Brand:
DSM
EU:
1.4006
ASTM:
410
JIS:
SUS410
GB:
12Cr13
APPLICATION:
tweezers and forceps


Availability:

Product Description

What is 410 stainless steel plate ?

410 stainless steel plate is a martensitic alloy that can be hardened. It can be heat-treated ("quench-and temper") for high strength and good ductility. The 410 alloy can be used when hardness, wear resistance and strength are required along with corrosion resistance.

The hardening ability of this steel compromises some of its other properties, and therefore the performance of the material. This alloy is only suitable for mildly corrosive conditions. The temperature range of the alloy is limited by a) loss of strength due to over tempering and b) loss of ductility when temperatures are sub-zero.

Type 410 steel plate, although officially a stainless-steel, is actually a combination of high-carbon steel alloys (which increase wear resistance) and chromium stainless-steel (which increases corrosion resistance).

This steel is perfect for manufacturing highly stressed components found in many industries, including automotive, petrochemical and power generation.

Chemical Composition

C	Mn	Si	P	S	Cr	Ni
0.15	1	1	0.04	0.03	11.5 - 13.5	0.5

410 Stainless Steel Plate Specification

Product	410 Stainless Steel Plates
Grade Equivalents	410, 1.4006,UNS S41000
Thickness (mm)	6mm to 50mm
Width (mm)	1250mm,1500mm,2000mm,Custom Width
Length (mm)	2000mm,2500mm, Custom Length
Finish	2B,No.4, BA,NO.1(HRAP),Custom Polish
Standard Coating	Paper Interleaf
Services	Shearing.Cutting. Blanking. Circles, Punching

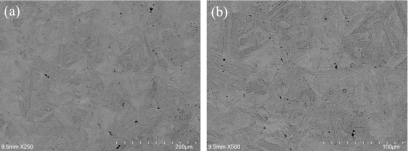

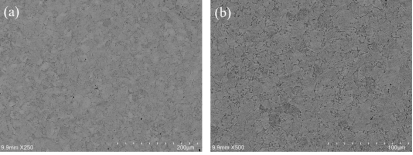

Hardness of 410 Stainless Steel plate

Heat Treatment	T410 (0.14%C) Hardened 1800°F (982°C)
	Rockwell Hardness	0.2% YS, Ksi (MPa)	UTS, Ksi (MPa)
Annealed*	81 HRB	45.4 (313)	80.4 (554)
Hardened & Tempered 400°F (204°C)	43 HRC	156.1 (1076)	202.9 (1399)
Hardened & Tempered 550°F (288°C)	40 HRC	148.3 (1022)	187.0 (1289)
Hardened & Tempered 600°F (316°C)	40 HRC	148.8 (1026)	186.1 (1283)
Hardened & Tempered 800°F (427°C)	41 HRC	132.9 (916)	188.5 (1300)
Hardened & Tempered 900°F (482°C)	41 HRC	122.6 (845)	154.3 (1063)
Hardened & Tempered 1000°F (538°C)	35 HRC	127.9 (882)	154.3 (1063)
Hardened & Tempered 1200°F (649°C)	98 HRB	85.5 (589)	111.2 (767)
