The razor blade strips are made from DSM42D series martensitic stainless steel and are delivered in the form of cold-rolled strips. Due to its exceptionally high carbon content, it is the ideal choice for razor blades.
Chemical Composition
Grade | C≤% | Si≤% | Mn≤% | P≤% | S≤% | Cr % |
42D002 | 0.60-0.70 | 1.00 | 1.00 | 0.04 | 0.03 | 12.5-14.00 |
··· | ··· | ··· | ··· | ··· | ··· | ··· |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation | Hardness | |
Min (Mpa) | Min (Mpa) | Min% 50mm | HRB | HV |
540 | 660 | 3 | min 92 | 200-320 |
Features of Our Razor Blade Steel
Carefully designed microstructure
Strict dimensional tolerance control
Free from harmful non-metallic inclusions
Excellent grinding, hardening, and honing performance
Smooth, burr-free cutting edges
Customized to requirements
Applications
disposable razors
Electric shaver
disposable scalpels
medical instrumen
Supply Form
For razor blade steel, DSM provides precision stainless steel cold-rolled strips in coil form.
Thickness | Thickness Tolerance | Width | Width Tolerance | ||
(mm) | (inches) | (mm) | (mm) | (inches) | (mm) |
0.075-0.10 | 0.003-0.004 | Min ±0.003mm | 1.2-700 | 0.047-27.560 | Min ±0.003mm |
0.120-0.50 | 0.005-0.020 | Max ±0.005mm | Max ±0.10mm |

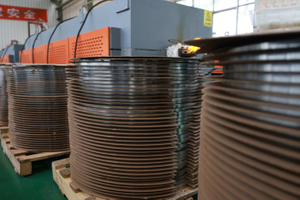

Precision stainless steel cold-rolled strips are wound on plastic reels with an inner diameter of 280 mm (11.024 inches). The maximum outer diameter of the steel strip reel is 870 mm (34.252 inches). This means that a single strip with a width of 22.1-22.4 mm (0.870-0.882 inches) can have a maximum weight of approximately 91-93 kg.
(Note: Delivery sizes and special dimension requirements can be customized as per request.)
To meet various customer needs, we offer a range of surface finishes, including 2B matte, 2B surface, and 2B bright. The surface roughness (Ra) ranges from 0.04 to 0.08 µm.
The edges of the steel strips are trimmed with burr heights of 0.001-0.002 mm. For special edge requirements, additional edge grinding treatments can be provided.
Microstructure
The size and quantity of carbides are crucial to the razor blade edge;
Carbides can be improved through optimization of rolling and annealing.
