After more than a decade of supplying stainless steel materials, we've worked closely with purchasing teams, engineers, and production managers from many surgical instrument manufacturers.
To be honest, price is rarely the first topic discussed during meetings.
What keeps buyers awake at night is not paying an extra few hundred dollars per ton. It's what happens after switching materials: scrap rates suddenly increase, surface defects appear, instruments discolor after sterilization, or even worse—complaints start coming from end customers.
As a long-term stainless steel supplier to the medical device industry, we've noticed that manufacturers usually focus on several key factors when sourcing stainless steel for surgical instruments.
When a surgical instrument manufacturer changes materials, the entire production process may need to be adjusted.
Should the heat treatment temperature be changed?
Do stamping dies need to be modified?
Will the polishing results remain the same?
If any of these issues are not properly addressed, production losses can quickly add up.
Buyers dislike having to revalidate their process every time a new batch of material arrives. One batch may be slightly softer, another may contain more inclusions that affect polishing quality.
These small variations can create major headaches on the production floor.
That's why a reliable supplier is not necessarily the one with the lowest price, but the one that delivers consistent quality every time.
Stable chemical composition, consistent hardness, and uniform surface quality may sound ordinary, but they make a huge difference in manufacturing.
Surgical instruments are constantly exposed to:
Blood and bodily fluids
Saline solutions
Cleaning chemicals
Disinfectants
Steam sterilization cycles
If corrosion resistance is insufficient, problems will eventually appear.
It may start with slight discoloration, then progress to pitting corrosion, and eventually visible rust spots.
At that point, the entire batch may have to be rejected.
However, there is one detail that is often overlooked.
Even with the same material grade, corrosion resistance can vary significantly depending on the heat treatment process.
If the quenching temperature is too high, carbides may precipitate at grain boundaries, reducing the chromium available for corrosion protection.
In other words, corrosion problems are not always caused by the material itself. Sometimes, they are caused by improper processing parameters.
We've seen several cases where customers reported rust issues. After reviewing their samples, we found that the heat treatment process was the root cause. Once the parameters were adjusted, the problem disappeared.
Many purchasing teams select materials based on material grades and hardness values.
But real-world performance is another story.
Questions manufacturers care about include:
Will the material crack during stamping?
How quickly will grinding wheels wear out?

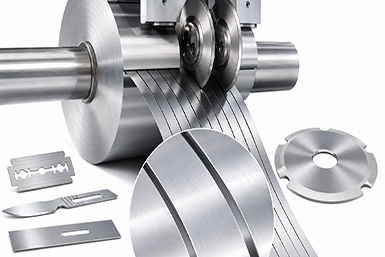

Are the slit edges clean and burr-free?
Is the strip flat enough for automated production lines?
Will the coils feed smoothly during processing?
You won't find these answers on a material datasheet.
However, they directly impact production efficiency and scrap rates.
An increase of just 2% in scrap can easily offset any savings gained from buying cheaper material.
There is no single stainless steel grade suitable for every surgical instrument.
Different applications require different properties.
Manufacturers prioritize:
High hardness
Sharpness
Edge retention
If a blade loses its sharpness during surgery, it can become a serious problem.
For these applications, 5Cr15MoV and 6Cr13 are common choices because they offer excellent hardness and long-lasting cutting performance.
Manufacturers focus on:
Hardness
Wear resistance
Polishing performance
420J2 and 4Cr13 are widely used because they provide a good balance of hardness and durability while achieving excellent mirror finishes.
These instruments require higher toughness.
Since they are repeatedly opened and closed, both strength and durability are essential.
420J1 is one of the most commonly used grades because it offers balanced performance at a reasonable cost.
These instruments are less dependent on extreme hardness but require good machinability.
410 stainless steel is often preferred due to its excellent processability and cost-effectiveness.
420J1, equivalent to Chinese grade 2Cr13 (20Cr13), contains 0.16%-0.25% carbon.
After heat treatment, its hardness typically reaches HRC 45-50.
It is widely used for:
Hemostat
Medical forceps
General surgical instruments
Advantages:
Good corrosion resistance
Balanced mechanical properties
Cost-effective
Easy to process
If you manufacture conventional surgical instruments, 420J1 is a safe and reliable choice.
420J2, equivalent to 3Cr13 (30Cr13), contains more carbon than 420J1.
Under similar heat treatment conditions, its hardness is approximately 2 HRC higher.
It is commonly used for:
Surgical scissors
Needle holders
Bone chisels
Compared to 420J1, it offers:
Higher hardness
Better edge retention
Improved wear resistance
If sharper cutting performance is required, 420J2 is usually the better option.
4Cr13 contains even more carbon and can achieve HRC 50-58 after heat treatment.
Typical applications include:
Surgical blades
Medical scissors
Bone chisels
Its international equivalent is X46Cr13 (1.4034).
If your instruments require higher hardness, 4Cr13 is a strong candidate.
5Cr15MoV contains additional molybdenum (Mo) and vanadium (V).
These alloying elements improve:
Corrosion resistance
Toughness
Hardenability
Grain refinement
Its hardness can reach HRC 55-58.
This grade is commonly used for:
Premium surgical blades
High-end surgical scissors
Although it is more expensive than traditional 420 series stainless steel, it offers a better balance of overall performance.
6Cr13 contains 0.55%-0.70% carbon and 12%-14% chromium.
After heat treatment, hardness can reach approximately HRC 58.
Internationally, it is often considered comparable to 440M and close to 440A, but with a lower cost.
Its fine carbide structure provides excellent edge retention while maintaining reasonable toughness.
Typical applications include:
Razor blades
Surgical blades
Orthopedic extraction instruments
Among these grades, 6Cr13 offers one of the highest hardness levels and is ideal for demanding cutting applications.
We specialize in the development and supply of martensitic stainless steel and understand the strict requirements of surgical instrument manufacturers.
Our value goes beyond simply supplying materials.
From 420 series to 440 series, from general-purpose grades to high-hardness materials, we can support a wide range of surgical instrument applications.
Every batch is accompanied by chemical composition reports and production records to ensure consistency and traceability.
We don't just supply materials. We work with customers to optimize heat treatment processes and achieve the best possible instrument performance.
Whether it's a new project, prototype development, or mass production, we can provide customized solutions in terms of:
Material grades
Dimensions
Hardness
Surface finishes
With sufficient inventory, processing capacity, and extensive export experience, we help customers shorten lead times and reduce supply chain risks.
Martensitic stainless steel remains one of the most important materials for surgical instruments.
It delivers the hardness needed for cutting performance and the reliability required for long-term use.
For manufacturers pursuing high-quality surgical instruments, choosing the right material grade and a dependable material supplier is one of the most important decisions they can make.
With our technical expertise and stable product quality, we aim to be a trusted long-term partner for surgical instrument manufacturers worldwide.
