1.4034 Vs 1.4116 Stainless Steel: A Comprehensive Comparison

When selecting stainless steel, 1.4034 and 1.4116 are two martensitic stainless steel grades that are frequently compared. Both belong to the European EN system and can be hardened by heat treatment. They are widely used in knives, medical instruments, and precision components. However, they differ significantly in chemical composition, hardness, wear resistance, corrosion resistance, and toughness, which makes them suitable for different applications.

This article compares the two grades from a buyer's material-selection perspective, helping you choose the option that best fits your product requirements.

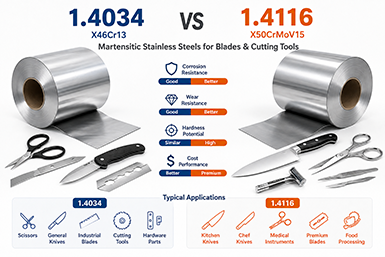

1. Key Parameters at a Glance

2. Chemical Composition: What Makes the Difference?

1.4034 uses a classic “higher carbon + approximately 13% chromium” composition. A carbon content of 0.43-0.50% supports the formation of high-carbon martensite after quenching, providing high hardness and wear resistance. Chromium at 12.50-14.50% contributes basic corrosion resistance and hardenability. This grade does not rely on molybdenum, vanadium, or nickel as additional strengthening alloying elements.

1.4116 can be viewed as a more highly alloyed alternative. Its carbon content is slightly higher at 0.45-0.55%, chromium rises to 14.00-15.00%, and the grade additionally contains 0.50-0.80% molybdenum (Mo) and 0.10-0.20% vanadium (V). Molybdenum improves resistance to pitting and crevice corrosion, while vanadium can contribute to grain refinement, toughness, and wear resistance. As a result, 1.4116 offers a more balanced overall property profile.

3. Hardness and Wear Resistance: Which One Is “Harder”?

1.4034 has the advantage in peak hardness. With optimized heat treatment, hardness can reach approximately 57-60 HRC. Higher hardness can support a very sharp cutting edge and strong initial edge retention.

1.4116 generally operates at a slightly lower hardness range, typically around 56-58 HRC. However, because of its vanadium addition and more highly alloyed structure, its wear performance in actual service can remain competitive.

Selection tip: If your product has a strict requirement for maximum hardness and sharpness, 1.4034 may be the better fit. If you prefer a more balanced combination of hardness, wear resistance, and toughness, 1.4116 is often the safer choice.

4. Corrosion Resistance: Which One Resists Rust Better?

Both grades are martensitic stainless steels. Their corrosion resistance is better than ordinary carbon steel, but generally lower than that of austenitic stainless steels such as 304.

1.4116 has the clear advantage in corrosion resistance. Its higher chromium content, together with molybdenum, improves resistance to pitting in chloride-containing environments. The difference is also reflected in PREN values: 1.4116 is approximately 18, compared with about 14 for 1.4034.

1.4034 performs well in moderately corrosive environments, such as contact with soaps, detergents, and some organic acids, but it is less suitable for chloride-rich environments. For best corrosion performance, 1.4034 is generally used in the hardened condition with a well-finished or polished surface.

Selection tip: For products used in humid, salty, or food-contact environments, 1.4116 is generally the more reliable option.

5. Toughness: Which One Handles Repeated Stress Better?

1.4034 performs strongly in toughness and fatigue-related applications. Its carbide population is generally less pronounced, which can support better resistance to repeated cyclic stress in some applications.

1.4116 offers a medium level of toughness. Its higher alloy content and greater carbide contribution can trade some toughness for improved wear and corrosion performance.

Selection tip: If the product must withstand repeated impact, vibration, or cyclic loading, the fatigue behavior of 1.4034 deserves particular attention.

6. Application Comparison

knife manufacturing concluded that 1.4116 is more suitable where higher edge wear resistance is required, while 1.4034 is more suitable where repeated cyclic stress is a key concern.

7. Which One Should You Choose?

There is no need to assume that 1.4116 is automatically the better choice simply because it has a higher alloy content.

Choose 1.4034 when your product requires good hardness, stable cutting performance, strong cost control, and a mature material option for volume production.

Choose 1.4116 when the product is used in humid, food-contact, or more corrosion-sensitive environments, or when you are developing a higher-positioned cutting product that benefits from a more balanced combination of wear and corrosion performance.
