A few days ago, our sales team forwarded a customer drawing to us. It contained only one surface requirement: “Ra 0.2.”
Our technical team asked the customer a few follow-up questions: What sampling length should be used? Should the measurement be taken in the rolling direction or transverse direction? Which standard should be followed?
The customer was a little surprised and replied, “Isn’t Ra just surface roughness? The lower the value, the shinier the surface, right?”
This is actually a very common misunderstanding.
Ra does represent surface roughness, but it is not simply a case of “the lower, the better.” If the requirement is selected incorrectly, you may either pay for a surface quality you do not actually need, or receive material that is unsuitable for the final application.
At DSM, we work with 400-series stainless steel strip such as 430, 409L, 410 and 420 on a daily basis, and we deal with a wide range of surface finishes. So in this article, we will explain what Ra really means and how to choose the right value.
Ra is one of the most commonly used parameters for evaluating the surface roughness of stainless steel strip.
Its full name is:
Arithmetic Average Roughness
In simple terms, a surface roughness tester or profilometer moves across a certain length of the material surface and records the microscopic peaks and valleys. Ra represents the average absolute deviation of those surface irregularities from the mean line.
Generally speaking, the lower the Ra value, the smoother the surface.
For example:
· Higher Ra: more noticeable microscopic peaks and valleys
· Lower Ra: a finer and smoother surface
· Very low Ra: usually requires more precise rolling, polishing, or other surface-finishing processes
One important point should be understood:
Ra describes the microscopic roughness of the surface. It does not directly equal visible brightness or gloss.
Some stainless steel surfaces may look very bright but still have a relatively high Ra value. Other surfaces may not look mirror-like, yet their roughness is already low enough for precision applications.
So when evaluating stainless steel strip surface quality, you cannot rely only on photographs or simply judge whether the material “looks shiny.”
Many 400-series stainless steels are ferritic grades, such as 430 and 409L, or martensitic grades, such as 410 and 420.
In many applications, surface condition plays an important role in both processing performance and final product quality. A change in Ra can directly affect several things.
For household appliance panels, decorative parts, and similar products, customers often require a uniform and attractive surface.
In these applications, Ra may need to be relatively low, often around 0.1–0.3 μm, depending on the required finish.
If the material will be powder coated, painted, or electrophoretically coated, an extremely smooth surface is not always ideal.
A certain amount of microscopic surface texture can improve coating adhesion by providing an “anchor” for the coating.
Depending on the process, an Ra range of around 0.4–1.0 μm may be more suitable.
For deep drawing and stamping applications, a certain degree of surface roughness can help retain lubricant during forming.
If the surface is too smooth, lubrication performance may sometimes be affected.
Therefore, for forming applications, it is not always necessary to specify the lowest possible Ra.
For materials such as 409L used in exhaust systems, excessively rough surfaces may trap contaminants or residues more easily.
Surface cleanliness, welding condition, pickling quality, and roughness can all affect long-term service performance.
The following values are general reference ranges based on common industrial experience. Actual values should always be confirmed by measurement.

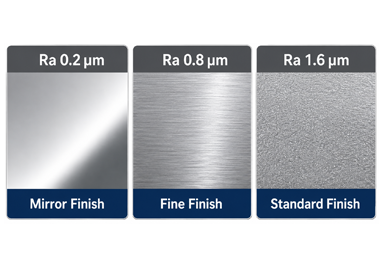

Surface Finish | Process Description | Typical Ra Range (μm) | Typical Applications |
2B | Cold rolled + annealed and pickled + skin passed | 0.1–0.5 | General use, deep drawing, welded tube |
BA | Bright annealed | 0.05–0.2 | Appliance panels, decorative applications |
No.4 | Short-grain polished finish | 0.2–1.0 | Kitchen equipment, elevators |
HL | Hairline finish | 0.2–0.8 | Architectural decoration |
8K | Mirror polished | < 0.05 | High-gloss decorative applications |
AP | Annealed and pickled finish | 0.5–3.2 | Exhaust systems, structural parts |
These values should be treated as references rather than fixed standards.
Even for the same named surface finish, actual Ra can vary depending on the steel grade, rolling process, roll condition, polishing method, material thickness, and production route.
The most practical way is to select the surface roughness based on the final application.
BA or 8K may be more suitable.
The Ra requirement may be controlled around 0.05–0.2 μm, depending on the final appearance requirement.
For example, our 430 BA stainless steel strip is often supplied for applications where a bright and uniform surface is required.
A standard 2B finish is often sufficient.
There is usually no need to pursue an extremely low Ra value. In some forming applications, an Ra around 0.2–0.4 μm can provide a good balance between surface quality and lubricant retention.
Avoid specifying an unnecessarily smooth surface.
A slightly rougher surface, for example around 0.4–1.0 μm, may provide better coating adhesion, depending on the actual coating process.
2B or AP finishes are commonly used.
The main concern is often not how shiny the surface is, but whether it is clean, uniform, and free from unacceptable oxide scale or surface defects.
There is also a practical cost consideration:
As Ra requirements become stricter, processing costs generally increase.
BA is usually more expensive than standard 2B, while 8K mirror polishing requires additional processing again.
So the right approach is to specify the surface quality that is actually required by the application, rather than paying for a finish that provides no practical benefit.
For applications with strict surface requirements, it is better to define:
· sampling length;
· measurement direction;
· applicable standard;
· measuring instrument or method.
Otherwise, the supplier and customer may obtain different test results even when testing the same material.
Relevant standards may include GB/T 1031, ISO 4287, or other standards specified by the customer.
If the strip has edge wave, center buckle, or poor flatness, that is a shape or flatness issue.
Ra does not describe the flatness of stainless steel strip.
For 400-series stainless steel, surface cleanliness, heat treatment, pickling, passivation, and contamination control can all affect corrosion performance.
Simply polishing the surface to a lower Ra does not automatically guarantee better corrosion resistance.
Very thin strip and high-hardness material may behave differently from thicker or softer material during rolling and finishing.
For demanding projects, we normally recommend confirming the required Ra through sample production before mass production.
Ra may sound like a complicated technical parameter, but the basic principle is straightforward:
It describes the average microscopic roughness of the material surface.
The important thing is not to chase the lowest possible number.
Instead, ask:
What does the finished product actually need?
At DSM, we supply 400-series stainless steel strip including 430, 409L, 410, 420 and other grades, with different surface conditions such as 2B, BA, No.4 and polished finishes.
If you are unsure which Ra value or surface finish is suitable for your application, you can send us your drawing, application information, or existing material sample.
