Availability: | |
---|---|
| |
321
DSM
1.4541
321
SUS321
06Cr18Ni11Ti
Welded constructions/ Aeronautical industry/ Electrical resistors
321 stainless steels of the Cr-Ni group are the most versatile and widely used. They have good properties of corrosion resistance, formability and weldability.
The excellent high-temperature stress rupture performance and high-temperature creep resistance stress mechanical properties of 321 stainless steel plates are better than those of 304 stainless steel plates.
Standard | C≤% | Si≤% | Mn≤% | P≤% | S≤% | Ni≤% | Cr% | N | Others |
GB/T 3280-2015 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 9.00-12.00 | 17.00-19.00 | 0.1 | Ti≥5XC |
JIS G 4305 | 0.08 | 1 | 2 | 0.045 | 0.03 | 9.00-13.00 | 17.00-19.00 | Ti≥5XC | |
ASTM A240 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 9.00-12.00 | 17.00-19.00 | 0.1 | Ti:5(C+N)imin,0.70max |
Standard | T.S. min | Y.S. min | EL min% | HARDNESS( max) | BEND | ||||
Mpa | Mpa | 50mm | HBW | HRB | HV | ||||
GB/T 3280-2015 | 515 | 205 | 40 | 217 | 95 | 220 | ------ | ||
JIS G 4305 | 520 | 205 | 40 | 187 | 90 | 200 | |||
ASTM A240 | 515 | 205 | 40 | 217 | 95 |

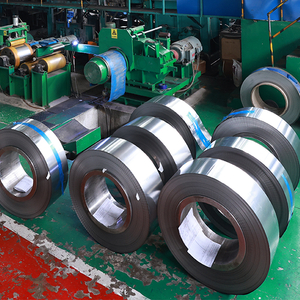

Precision stainless steel strip | |||||||||
Thickness | 0.08-0.5mm | ||||||||
Rolling width | 450-680mm | ||||||||
Slitting width | 5-680mm(We can slitting for you as per your required width,but if you need some special width such as 400mm coil the remaining 280mm you also need to purchase which can not sale to other clients) | ||||||||
Length | coil or as per requirement. | ||||||||
Surface | 2B | ||||||||
Original | DSM | ||||||||
Standard | Produce as per your requirement. | ||||||||
MOQ | 3mt or as per coil actual weight |
