6Cr13
DSM
-
-
-
60Cr13
disposable razors, disposable scalpels,
DSM's 6Cr13 (42D00 series) is a unique product of our company. This product is used to produce disposable razor blades. In terms of performance materials, the products produced are particularly good.
Razor blade steel 6Cr13 is supplied in cold rolled steel strip coils.
Why choose DSM razor blade steel?
Carefully designed microstructure
Strict dimensional tolerance control
Free from harmful non-metallic inclusions
Excellent grinding, hardening, and honing performance
Smooth, burr-free cutting edges
Customized to requirements
Chemical Composition
Grade | C≤% | Si≤% | Mn≤% | P≤% | S≤% | Cr % | others |
42D002 | 0.60-0.70 | 1.00 | 1.00 | 0.04 | 0.03 | 12.5-14.00 | ---- |
····· | ····· | ····· | ····· | ····· | ····· | ····· | ····· |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation | Hardness | |
Min (Mpa) | Min (Mpa) | Min% 50mm | HRB | HV |
540 | 660 | 3 | min 92 | 200-320 |

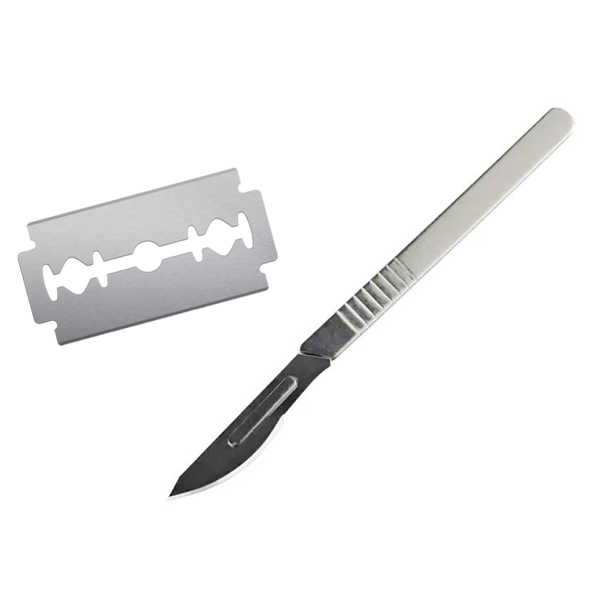

Applications
Disposable razor
Electric shaver
Disposable scalpels
Medical instrumen
Supply Form
Thickness | Thickness Tolerance | Width | Width Tolerance | ||
(mm) | (inches) | (mm) | (mm) | (inches) | (mm) |
0.075-0.10 | 0.003-0.004 | Min ±0.003mm | 1.2-700 | 0.047-27.560 | Min ±0.003mm |
0.120-0.50 | 0.005-0.020 | Max ±0.005mm | - | - | Max ±0.10mm |
Delivery
Precision stainless steel cold-rolled strips are wound on plastic reels with an inner diameter of 280 mm (11.024 inches). The maximum outer diameter of the steel strip reel is 870 mm (34.252 inches). This means that a single strip with a width of 22.1-22.4 mm (0.870-0.882 inches) can have a maximum weight of approximately 91-93 kg.
(Note: Delivery sizes and special dimension requirements can be customized as per request.)
To meet various customer needs, we offer a range of surface finishes, including 2B matte, 2B surface, and 2B bright. The surface roughness (Ra) ranges from 0.04 to 0.08 µm.
The edges of the steel strips are trimmed with burr heights of 0.001-0.002 mm. For special edge requirements, additional edge grinding treatments can be provided.
Packaging
DSM uses various packaging standards to ensure that products are neatly and attractively packaged. The packaging provides protection against rust, moisture, dust, pressure, impact, and scratches, ensuring that the materials arrive at the customer's warehouse in perfect condition. Small wooden blocks are placed between the strips to facilitate easy handling.
Each steel strip is labeled with relevant material information, including coil number, steel grade, dimensions, and net weight. Additionally, a main sample is included with each bundle to facilitate customer inspection and testing.
Microstructure
The size and quantity of carbides are crucial to the razor blade edge;
Carbides can be improved through optimization of rolling and annealing.
